| Specification | Details |
|---|---|
| Robust Design | Motor frames casted in Cast Iron or Aluminium |
| H-Class Insulated Winding | Can withstand temperature up to 220°C |
| Adjustable Vibration Forces | From zero to maximum by adjusting the position of unbalance weights provided on both sides of the motor shaft |
| Power Supply | 400 V (±10%), 50/60 Hz, 3 Phase AC |

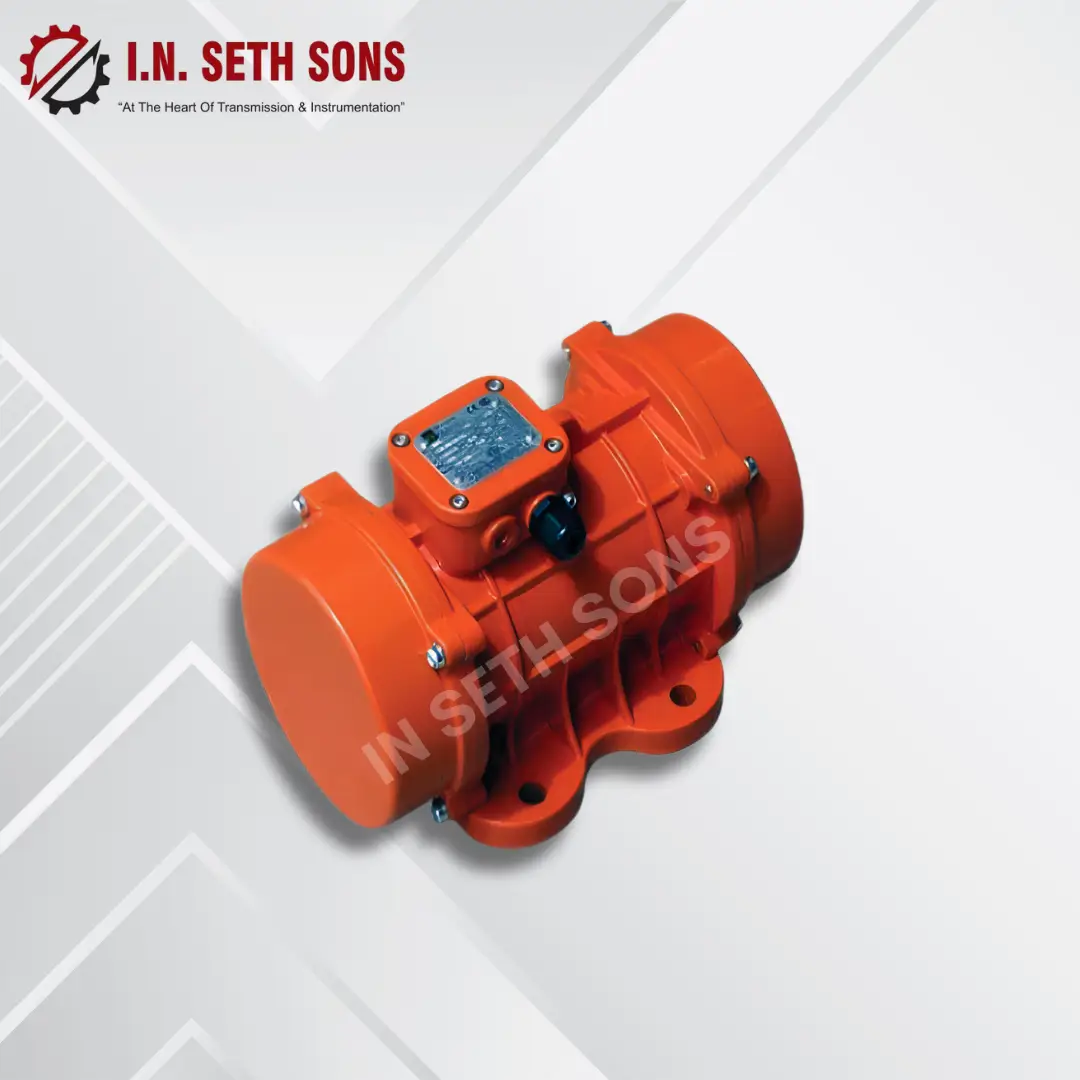

Vibrator Motors
As a reputed industrial motor manufacturer and supplier, we offer high-performance vibrator motors designed to deliver strong vibration force, reliable operation, and long service life for demanding industrial applications. Our vibrator motors are engineered with precision to ensure consistent performance in continuous-duty environments.
These motors generate controlled vibration through unbalanced weights mounted on the motor shaft, making them ideal for material movement, compaction, screening, and feeding applications across multiple industries.
Specifications
Power Rating: 0.10 kW to 5.0 kW – Suitable for light to heavy-duty industrial vibration requirements.
Speed: 1000 RPM / 1500 RPM / 3000 RPM – Available to match different vibration intensity and application needs.
Voltage: 220 Volts / 415 Volts – Compatible with standard industrial power supplies.
Frequency: 50 Hz & 60 Hz – Suitable for Indian and international electrical standards.
Mounting Type:
-
Foot Mounted
Duty Type:
-
Continuous Duty (S1)
Key Features & Benefits
- High Vibration Force – Designed to deliver powerful and uniform vibration for efficient material handling and processing.
- Robust Construction – Heavy-duty housing and high-quality bearings ensure durability and long operational life in harsh industrial environments.
- Low Maintenance Design – Simple construction with fewer moving parts reduces maintenance requirements and downtime.
- Energy-Efficient Performance – Optimized motor design ensures effective vibration output with efficient power consumption.
- Reliable Continuous Operation – Engineered for uninterrupted operation in demanding applications such as screening, conveying, and compaction.
Applications
Vibrator motors are widely used in:
-
Vibrating screens
-
Vibratory feeders
-
Hoppers and silos
-
Compaction tables
-
Conveying systems
-
Foundries and casting units
-
Mining and construction equipment
Why Choose Us as Your Vibrator Motor Supplier
-
Trusted industrial motor manufacturer & supplier
-
High-quality vibrator motors with consistent performance
-
Wide range of power ratings and speed options
-
Technical guidance for application-specific selection
-
Reliable after-sales support for spares and service
| Specification | Details |
|---|---|
| Robust Design | Motor frames casted in Cast Iron or Aluminium |
| Mechanical Protection Structure | Can operate under harsh, dusty environments. Complies with IP66 specification according to IEC 60529 |
| H-Class Insulated Winding | Can withstand temperature up to 220°C |
| Adjustable Vibration Forces | From zero to maximum by adjusting the position of unbalance weights provided on both sides of the motor shaft |
| Wide Range | From 2 to 8 pole with various standard models |
| Silent Operation | Vibro motors make no unpleasant sound |
| Service Rating | Continuous duty (S1) at maximum centrifugal force & S4 duty available on request |
| Centrifugal Forces | Available in a wide range from 50 N to 200 N |
| Operating Environments & Temperatures | Suitable for indoor & outdoor use; temperature range: −20°C to +80°C |
| Tropicalizing | Class H insulated windings (220°C) |
| Terminal Box | Terminal box connector sealed with resin layer to prevent damage due to vibrations |
| Power Supply | 400 V (±10%), 50/60 Hz, 3 Phase AC |
| Special Voltages / Frequencies | Can be provided on request at additional cost |
| Bearings | All bearings used are of NSK Japan / SKF |
| Colour Coating | Polyurethane painting supported by Hempel / Grand Polycoat OR Polyester powder coating |
